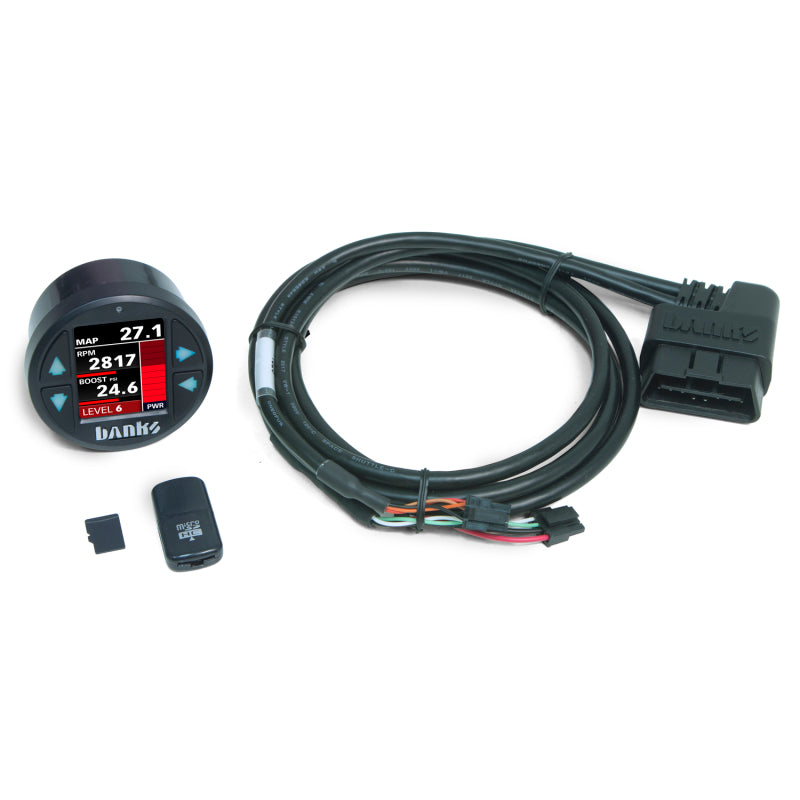

Banks Power iDash 1.8 DataMonster Upgrade Kit for 01-10 Chevy 6.6L Six-Gun/EconoMind/Speedbrake

Banks iDash is the smallest, most powerful plug-n-play OBD-II monitor and control interface on the market. With its easy to read 2- to 8-gauge user selectable LCD display, the iDash 1.8 reads a multitude of engine parameters and internal data directly the vehicles ECU via OBD-II. It also opens a whole new world of Banks exclusive calculated parameters not available on any other device. Set custom low and high alerts for any engine parameter. Monitor max and min values for a user selectable list of parameters. Read and clear trouble codes on-the-fly. Customize the navigation button and LCD display colors, brightness, and even the rate at which they dim at night. Daisy chain 4 iDash gauges and view up to 32 parameters simultaneously. Add Banks sensor modules such as the 4-channel analog module, 4-channel thermocouple module, and AirMouse Ambient Air Density Module for nearly infinite vehicle and weather analysis. For those who want to record their vehicles parameters, the iDash DataMonster adds data logging for up to 100 user selectable parameters at a rate of up to 20 samples per second. With the included microSD card, owners can log over a months worth of continuous data. Data can be played back right on the iDash or transferred to a computer for deeper analysis. Expand functionality with Banks Modules (Pressure/Temp Sensors, and more).
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2001-2005	Chevrolet	Silverado 2500 HD	Base
2001-2006	Chevrolet	Silverado 2500 HD	LS
2001-2006	Chevrolet	Silverado 2500 HD	LT
2004-2006	Chevrolet	Silverado 2500 HD	WT
2007	Chevrolet	Silverado 2500 HD Classic	LS
2007	Chevrolet	Silverado 2500 HD Classic	LT
2007	Chevrolet	Silverado 2500 HD Classic	WT
2001-2005	Chevrolet	Silverado 3500	Base
2001-2006	Chevrolet	Silverado 3500	LS
2001-2006	Chevrolet	Silverado 3500	LT
2004,2006	Chevrolet	Silverado 3500	WT
2007	Chevrolet	Silverado 3500 Classic	LS
2007	Chevrolet	Silverado 3500 Classic	LT
2007	Chevrolet	Silverado 3500 Classic	WT
