1979-1993 Ford Mustang/1979-1986 Mercury Capri

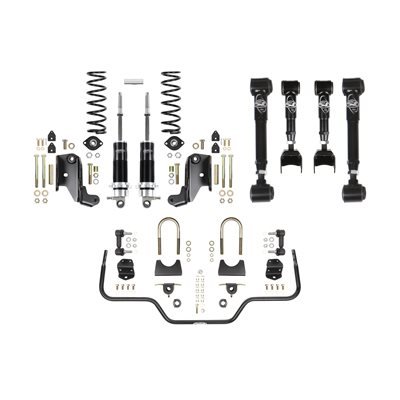

The Speed Kit 2 Rear Suspension Kit from Detroit Speed is designed to give maximum suspension performance to your Fox Body chassis. This kit combines our 1) Rear Coilover Conversion, 2) Swivel-Link™, and 3) Rear Sway Bar Kits.
1) The Detroit Speed Rear Coilover Conversion Kit allows the latest in coilover spring/shock technology to be bolted onto any Fox Body Mustang, bringing your classic's handling and ride into the 21st Century with our "Detroit Tuned" valving. The springs are removed from the lower control arms and shocks mounts are relocated into the frame rail for maximum strength and wheel/tire clearance. Once the coilover conversion is complete, Detroit Speed Mini-Tubs may be installed in the car at any time. The included Double Adjustable Shock is the most race-winning shock JRi has in its stable. With its two independent adjustment types (low speed and high speed) and the enormous adjustment range, these shocks can be set to the exacting demands of the driver and performance levels required while providing excellent ride quality on the street.
2) The Detroit Speed Swivel-Link™ Rear Suspension Kit eliminates bind and allows the suspension to fully articulate without the use of noisy spherical rod ends. Swivel-Link™ rear links allow for easy pinion angle adjustment without unbolting them from the car for improved traction and lower driveline vibrations. The Fox Body Mustang Swivel-Link™ Kit comes with new hardware and directly bolts on to replace the factory links. A coilover conversion kit is required before installing the Swivel-Link™ kit, as there is no spring perch on the links like on the factory arm.
3) The Detroit Speed Fox Body Mustang Sway Bar offers multiple advantages over the non-effective stock rear bar. Detroit Speed sway bars attach to the rear end housing and the frame rail, whereas the stock bar only connects to the lower suspension links. By using the chassis to stabilize the rear axle as opposed to the opposing link, the deflection of the vehicle under heavy cornering is minimized. Detroit Speed sway bars mount with a low-friction ball-style end-link, allowing free articulation of the bar and eliminating binding through the range of rear suspension travel.
Bolt-on coilover conversion relocates the springs/shocks to the frame rail for maximum strength and wheel/tire clearance
"Detroit Tuned" coilover springs/shocks optimized for modern ride quality, handling and ride-height adjustment
Provides clearance for custom exhaust up to 3" (depending on tire and mini-tub width, fuel tank modification may be required)
Laser-cut brackets compatible with original frames and axles
Bolt-on Detroit Speed Swivel-Links™ are stronger than factory control arms and eliminate bind, allowing the rear suspension to fully articulate
Easily adjust wheelbase and pinion angle without unbolting Swivel-Links™ from the car for improved traction and lower driveline vibrations
Bolt-on tubular sway bar mounts directly to the chassis and axle - more effective than factory bar
3/4" sway bar diameter
