Recommendations for 5 lug C10 Fitment:
The 5.25" backspacing front wheels fit trucks with the factory-track width front suspension
The 4.5" and 4.75" backspacing front wheels are optimized for narrowed front spindles (common on lowered applications such as CPP spindles - this also gives the wheel a deeper dish).
The 5.5" backspacing fit rear wheels with factory-length axles.
The 4.0" backspacing fit rear wheels on rear axles that have been narrowed 1.5" per side (3" total).
These wheels feature a nostalgic deep-dish style that works best with factory-style brakes. Trucks with big-brake kits require a wheel with more positive offset, but this eliminates the classic deep-dish design & style (since the center of the wheel is moved out flush with the outer edge of the wheel). Customers with big-brake kits should consider using wheels designed for that application (i.e., Rocket Racing "Attack" wheels).
The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e., axle swaps, disc brake / big-brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.

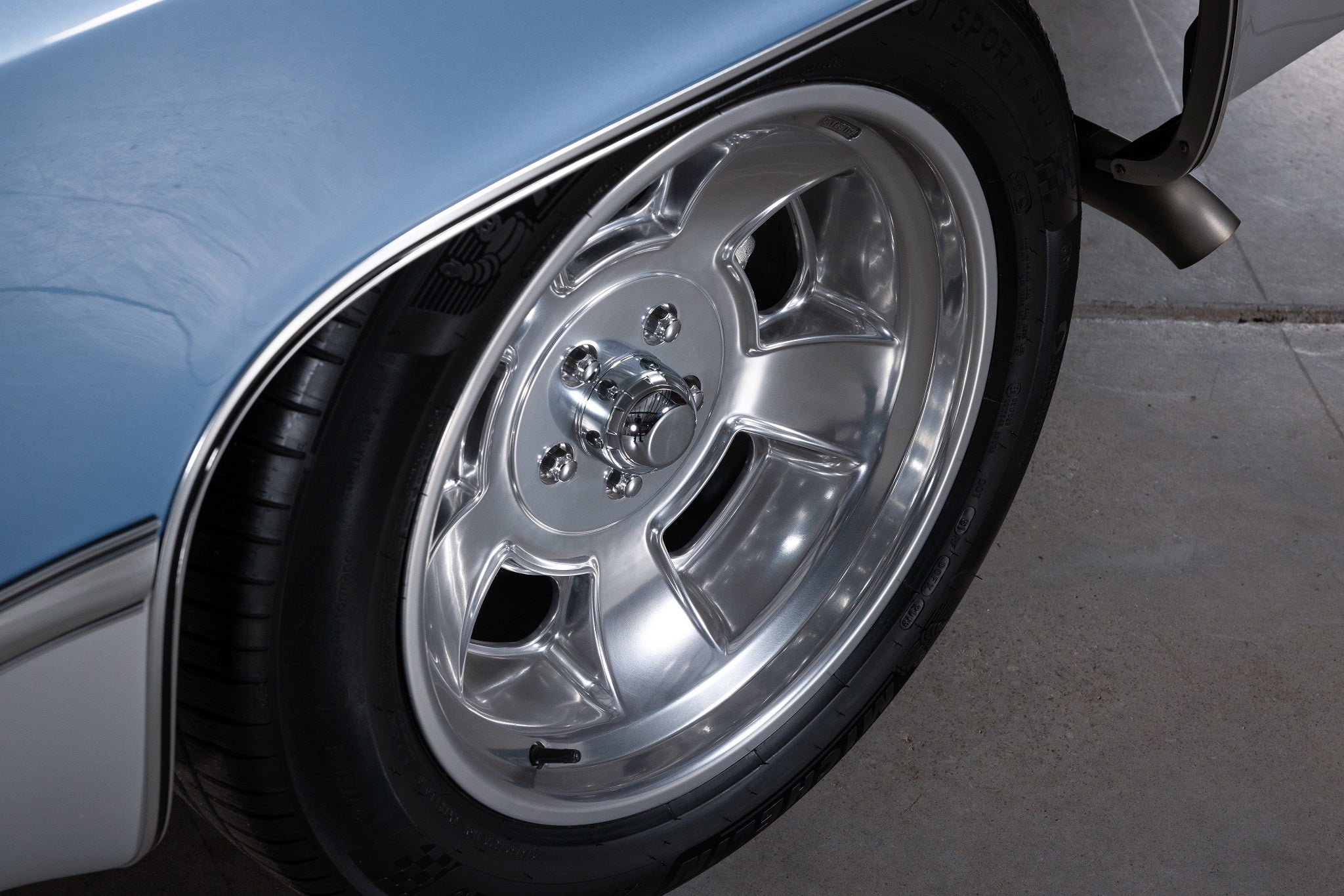

Halibrand Sprint Wheels for the C10 are nostalgic styled wheels based on the original classic "Sprint" wheels, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. These wheels eliminate the fitment guesswork and tire rubbing that can be common with generic-sized after-market wheels. These wheels will also work with 6 lug C10's that have been converted to 5 lug.
The Flow-Formed wheel manufacturing process applies pressure and heat to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel.
Wheels are available with a painted or polished finish with options for a machined lip. Choose from Anthracite, MAG7, or Polished Finish. The 3-step paint process includes a powder-coated primer, paint, and clear-coat for durability and easy maintenance. The polished wheels are available with or without the clear-coat finish (uncoated wheels can be polished to a show car quality finish). Each wheel comes with a lightweight chromed polymer bullet-style center cap.
Recommendations for C10:
The 5.25" backspacing front wheels fit trucks with the factory-track width front suspension
The 4.5" and 4.75" backspacing front wheels are optimized for narrowed front spindles (common on lowered applications such as CPP spindles - this also gives the wheel a deeper dish).
The 5.5" backspacing fit rear wheels with factory-length axles.
The 4.0" backspacing fit rear wheels on rear axles that have been narrowed 1.5" per side (3" total).
Staggered Diameter and Width:
19x8.5 (4.75" backspacing) Front Wheels with 20x10 (5.5" backspacing) Rear Wheels
Fitment Optimized on the C10 Trucks - Lowered Vehicles with Narrowed Front Spindles and Factory Width Rear Axle
Recommended Tires for a "Meaty" Fitment: 255/45R19 and 275/50R20
Choose from MAG7, Anthracite, or Polished Finish
20" with Staggered Width:
20x8.5 (4.75" backspace) Front Wheels with 20x10 (5.5" backspace) Rear Wheels
Fitment Optimized on the C10 Trucks - Lowered Vehicles with Narrowed Front Spindles and Factory Width Rear Axle
Recommended Tires for a "Meaty" Fitment: 255/45R20 and 275/50R20
Choose from MAG7, Anthracite, or Polished Finish

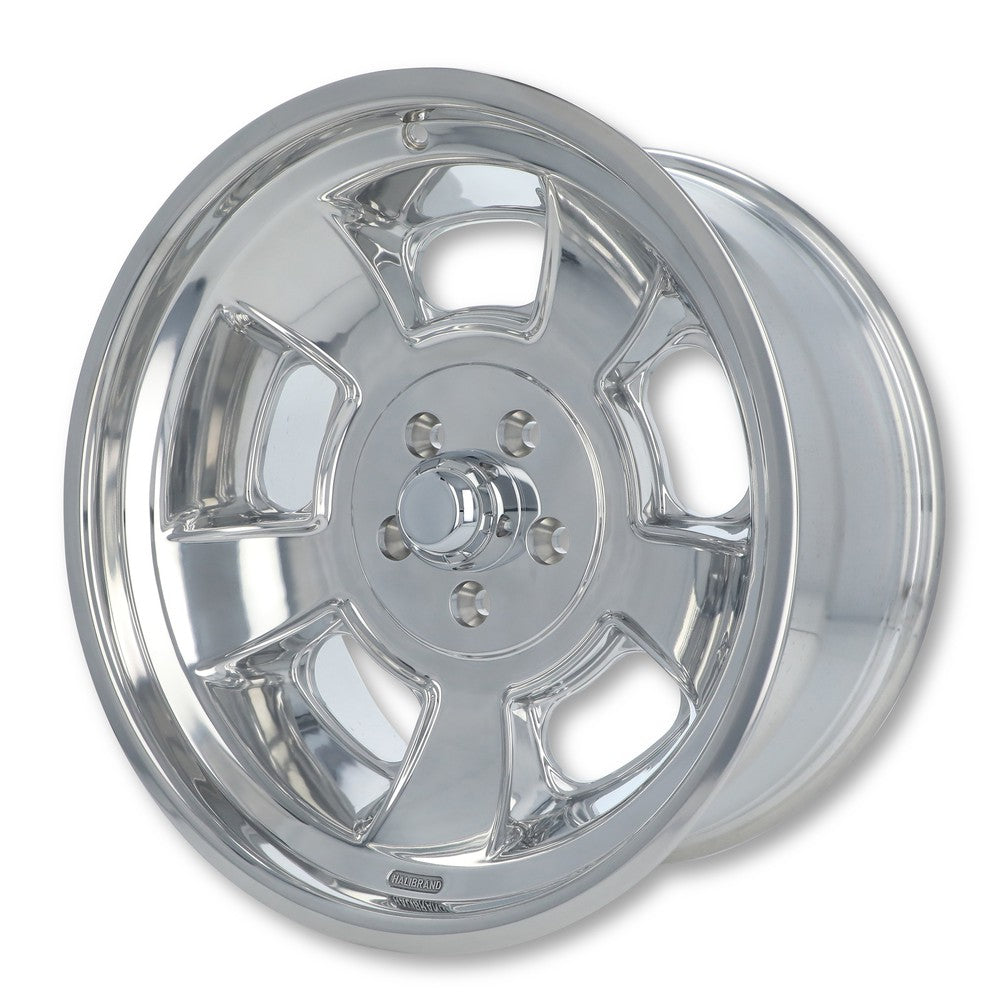

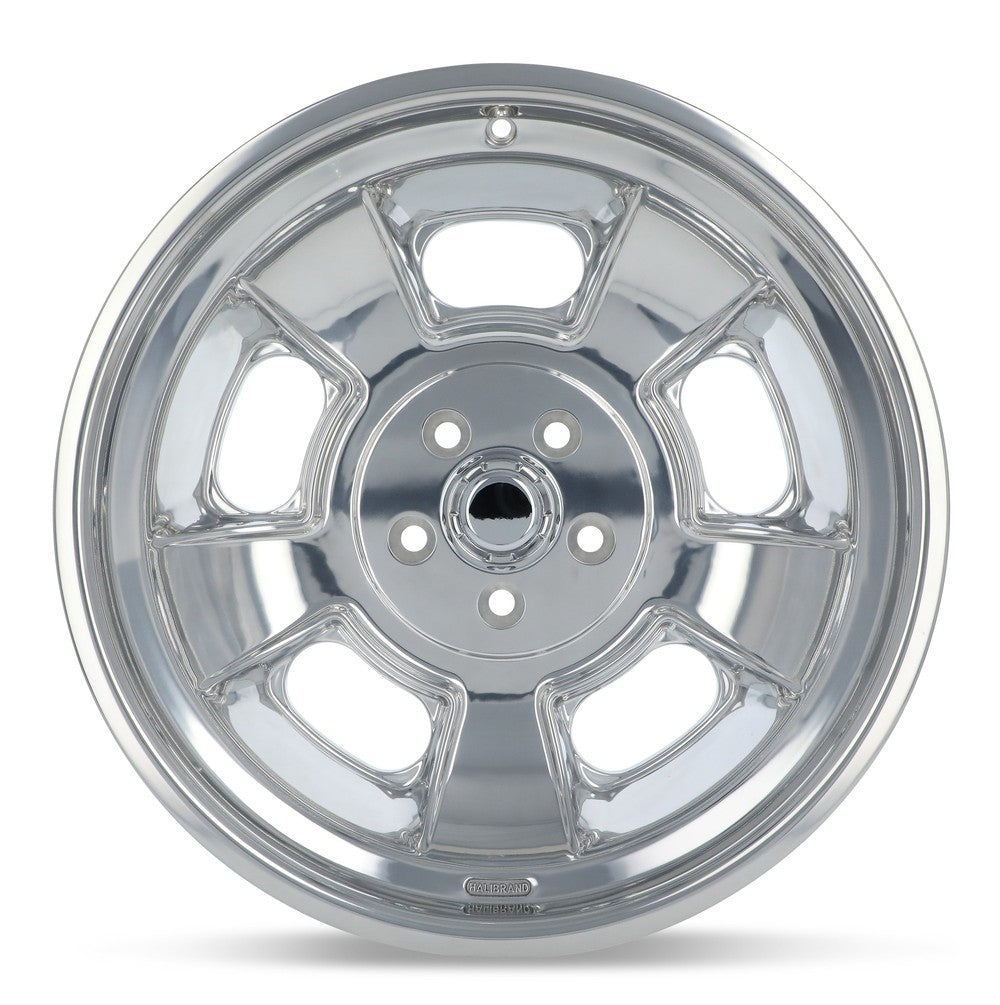

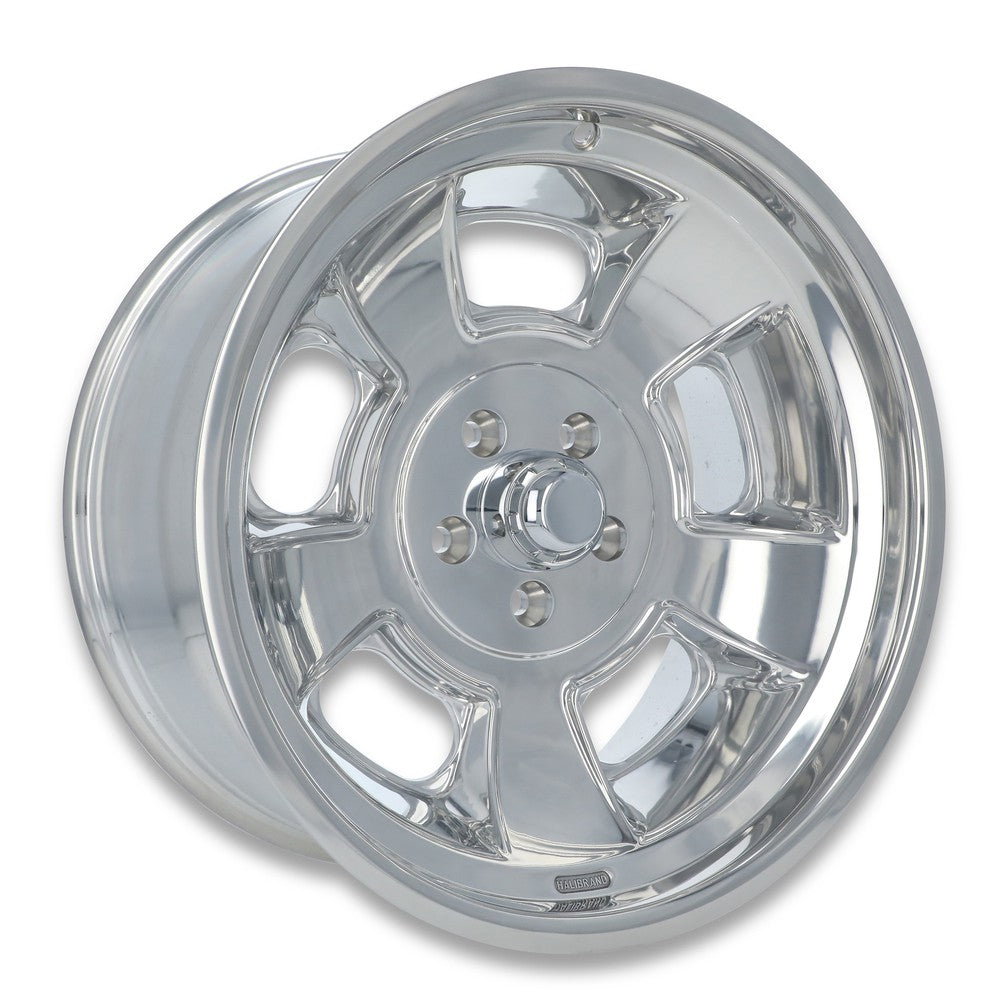

Classic Halibrand Nostalgic Styled Sprint Wheels
A356-T6 Aluminum Construction with Flow-Formed Wheel Manufacturing Process - Produces Wheels that are Lighter, Stronger, and Have a Higher Shock Resistance (than Standard Cast Aluminum Wheels)
Hub Centric Mounting, Helps Ensure the Wheel is Optimally Centered on the C10 Hub - Instead of Relying only on the Wheel Studs and Lug Nuts

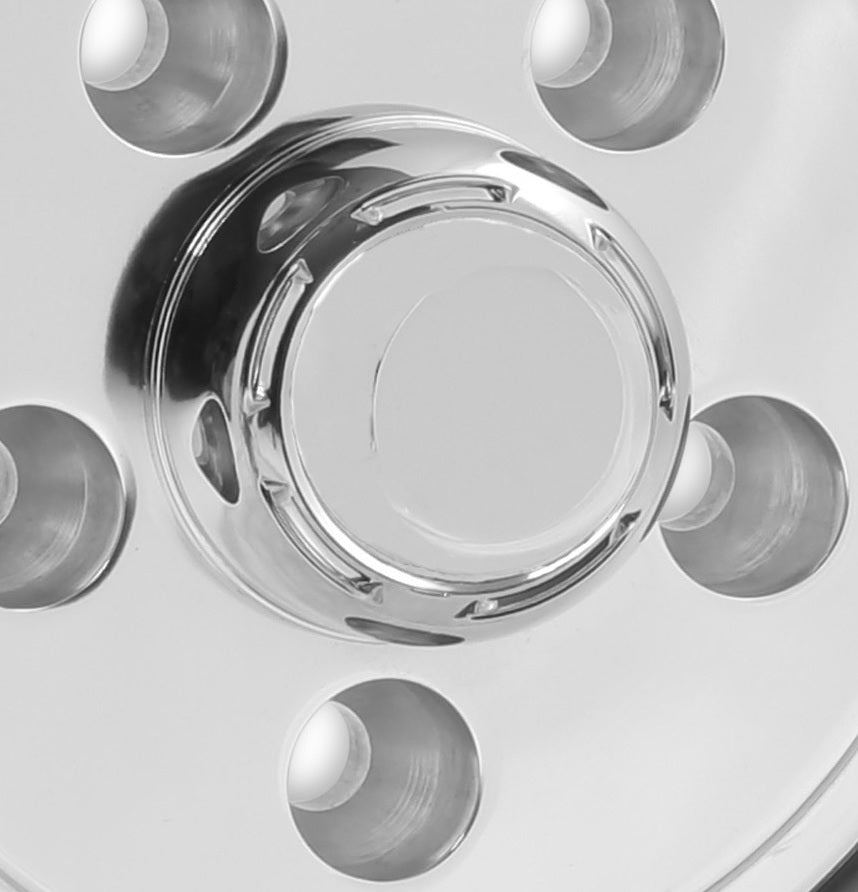

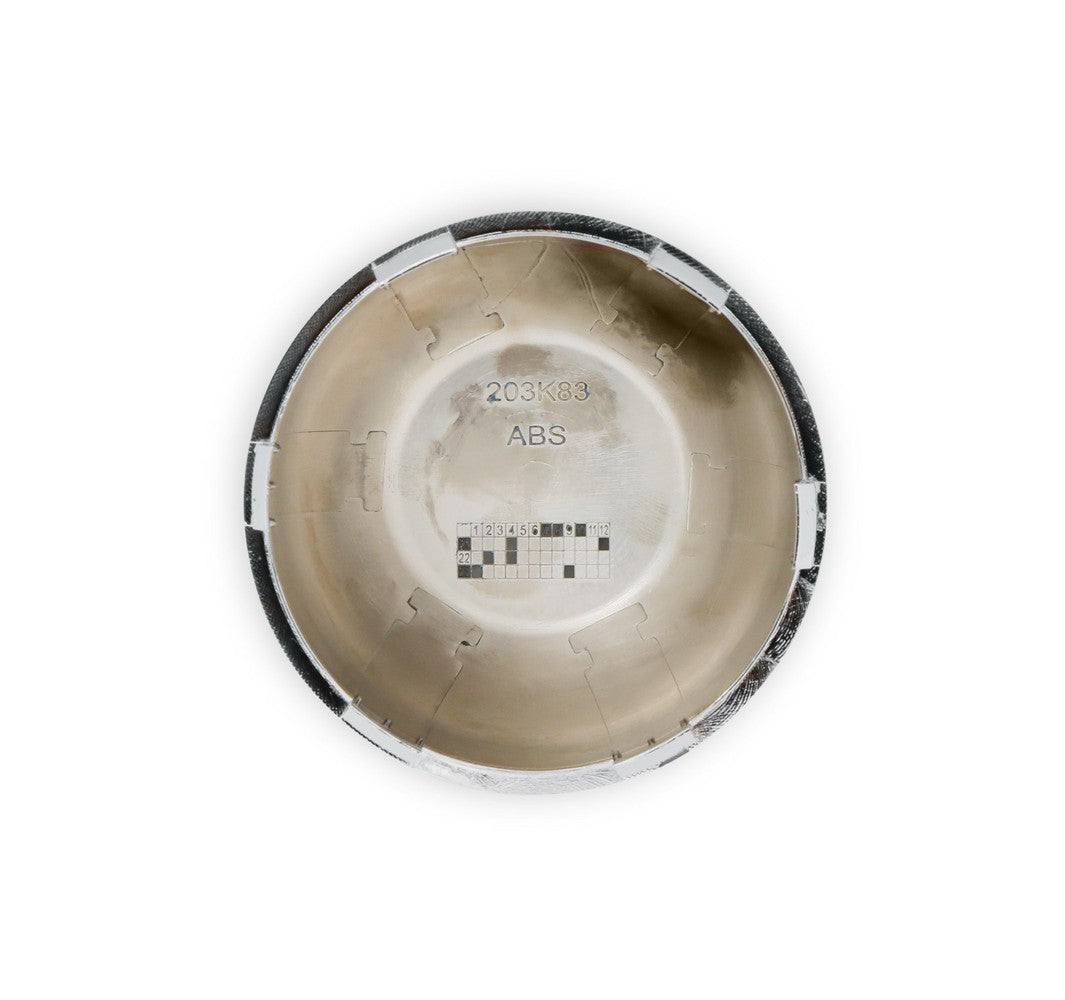

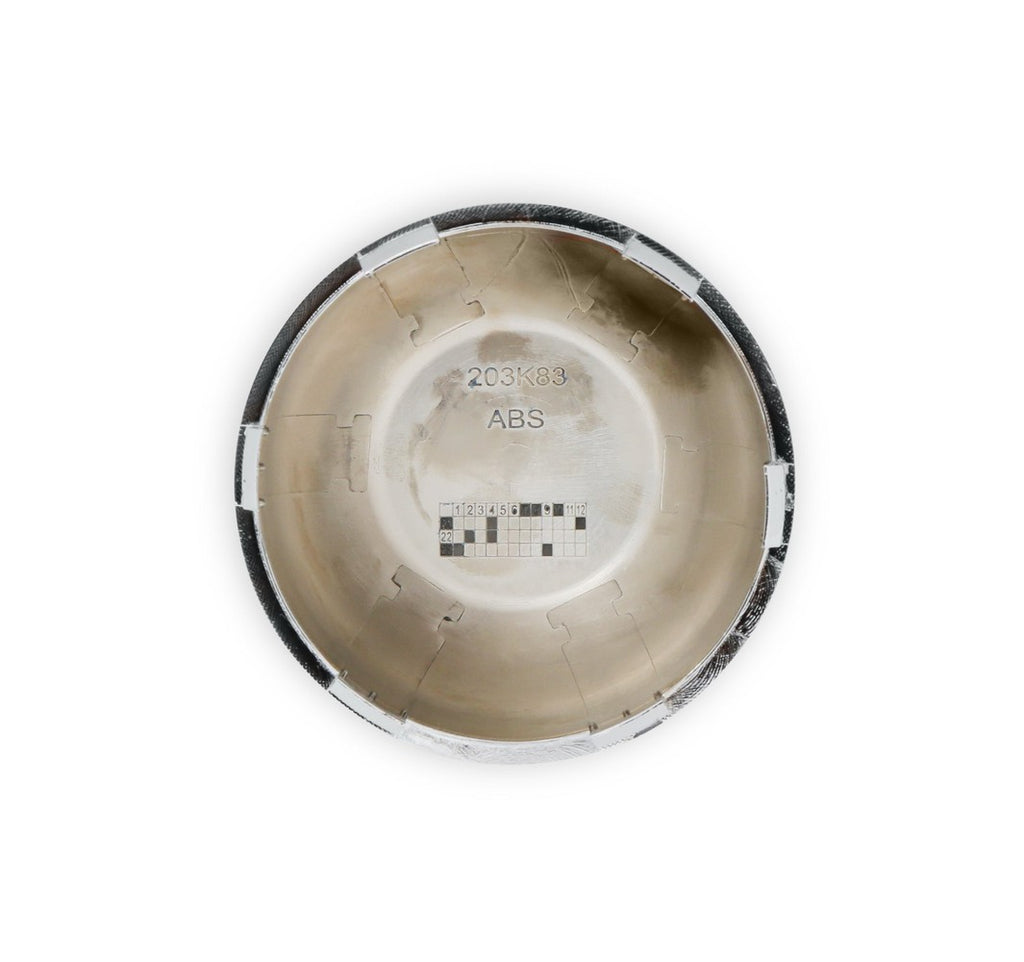

Includes Light Weight Chromed Polymer Bullet Style Center Cap
Deep-Dish Styled Wheels with Curved Spokes - for Improved Appearance and Classic Style
Choose from the Following Sizes and Backspacing (BS) Options: 19x8.5 (BS 4.5", 4.75", 5.25"), 19x10 (BS 5.5"), 20x8.5 (BS 4.5", 4.75", 5.25"), and 20x10 (BS 4.0", 5.5") - The 8.5" Wide Wheels Fit the Front, and the 10" Wide Wheels Fit the Rear
Choose from the Following Finishes: MAG7 Semi-Gloss, Anthracite Semi-Gloss, Anthracite Gloss, Polished with Gloss Clear-Coat, or Polished without Clearcoat - Most Painted Wheels Have Options for Machined Lip
3-Step Paint Finish Process - Powder Primer, Paint, and Clear-Coat for Durability and Easy Cleaning
The MAG7 Finish Has a Similar Appearance to the Classic Gold Chemical Treatment Used on Magnesium Halibrand Wheels in the 1960s & 1970s
The Anthracite Finish is Reminiscent of a Seasoned Magnesium Wheel

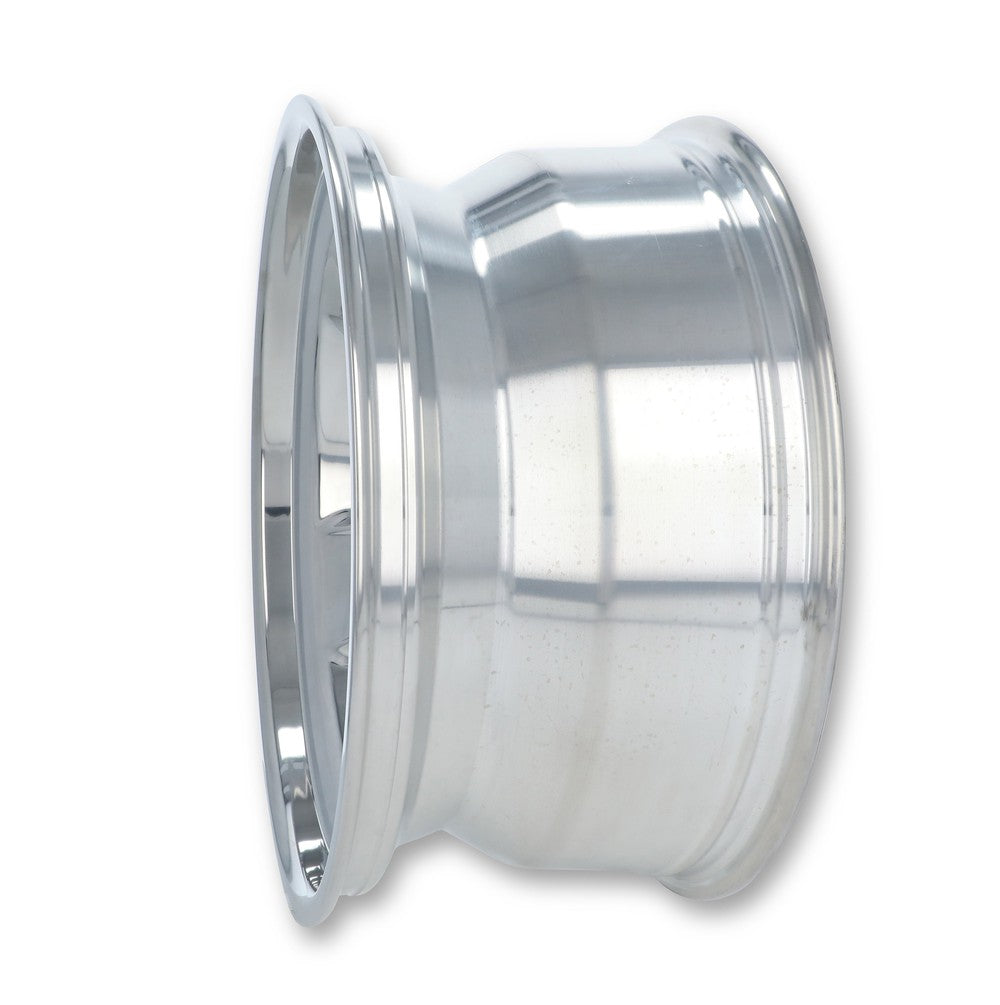

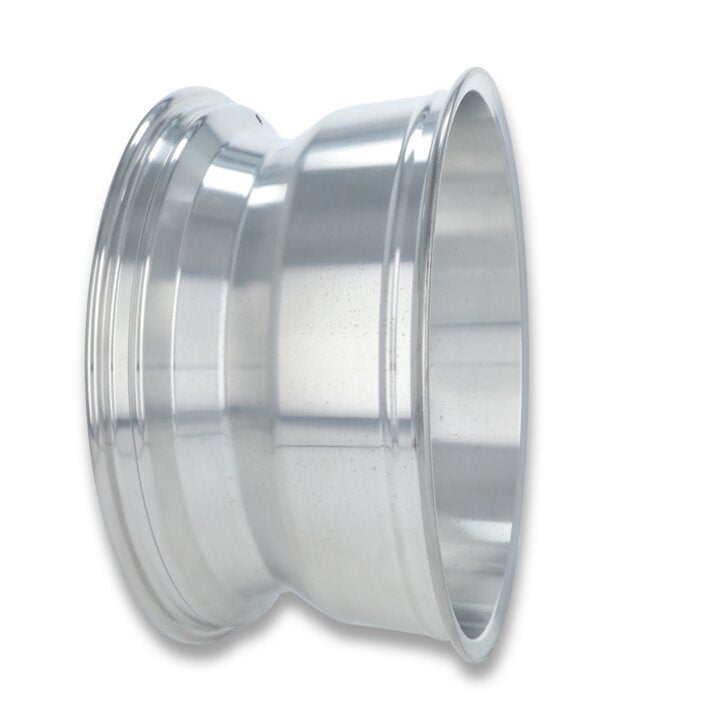

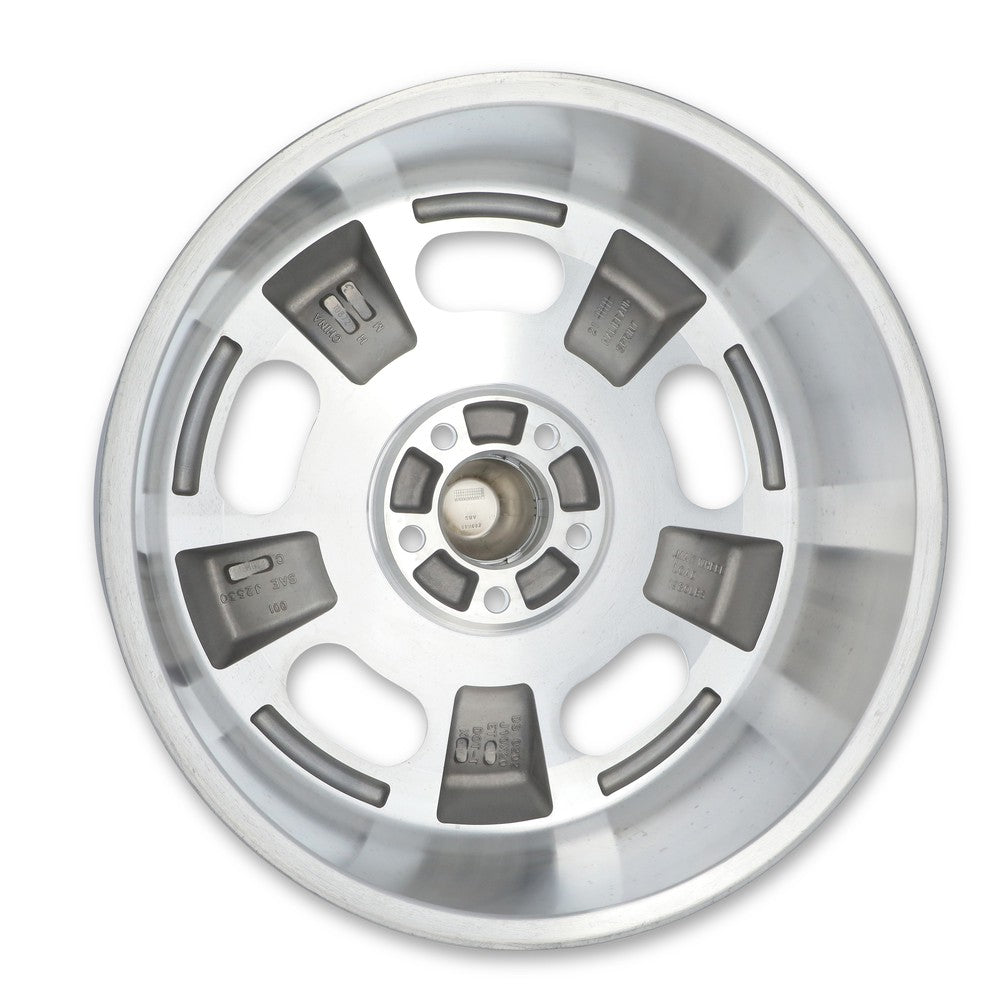

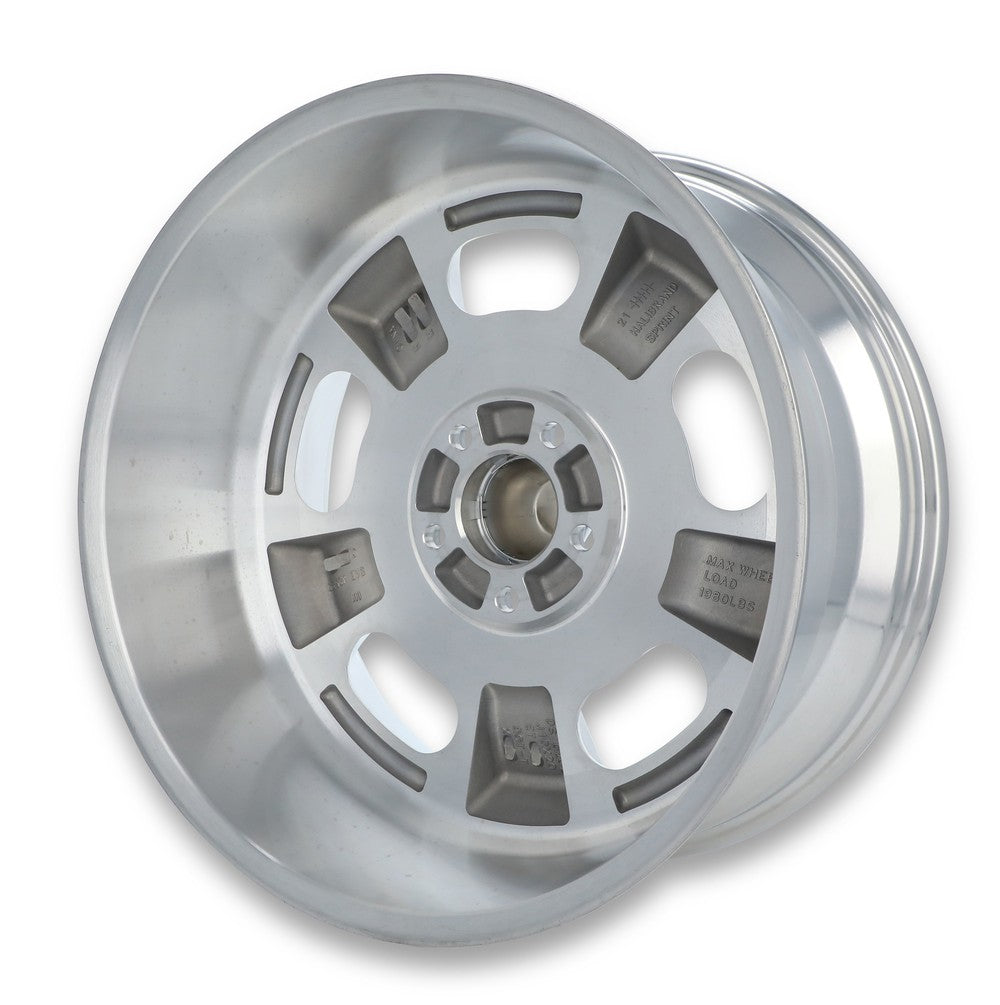

The Classic Polished Wheels are Available with or without the clear-coat and are Fully Machine Polished on the Front and As-cast / Machined on the Backside

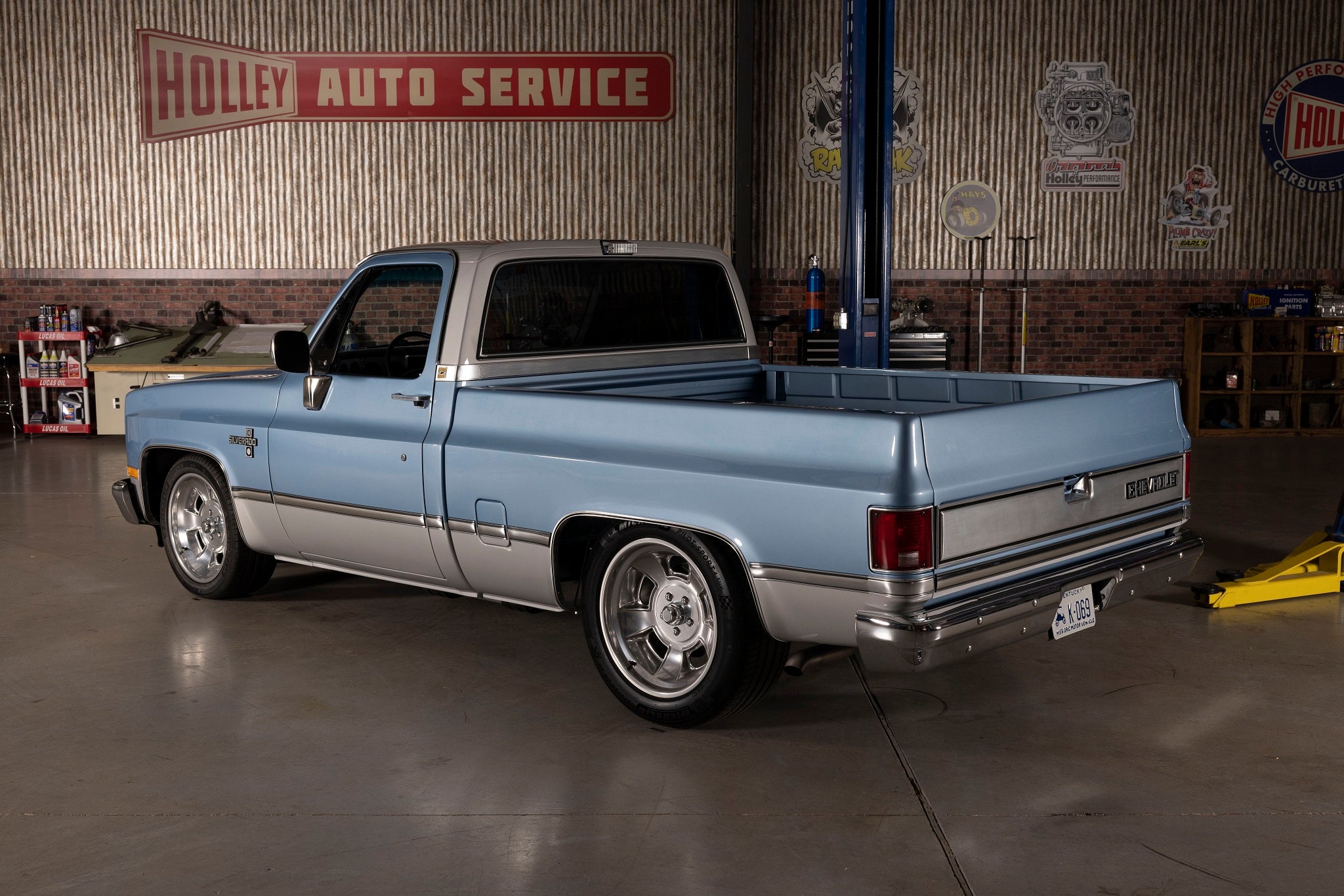

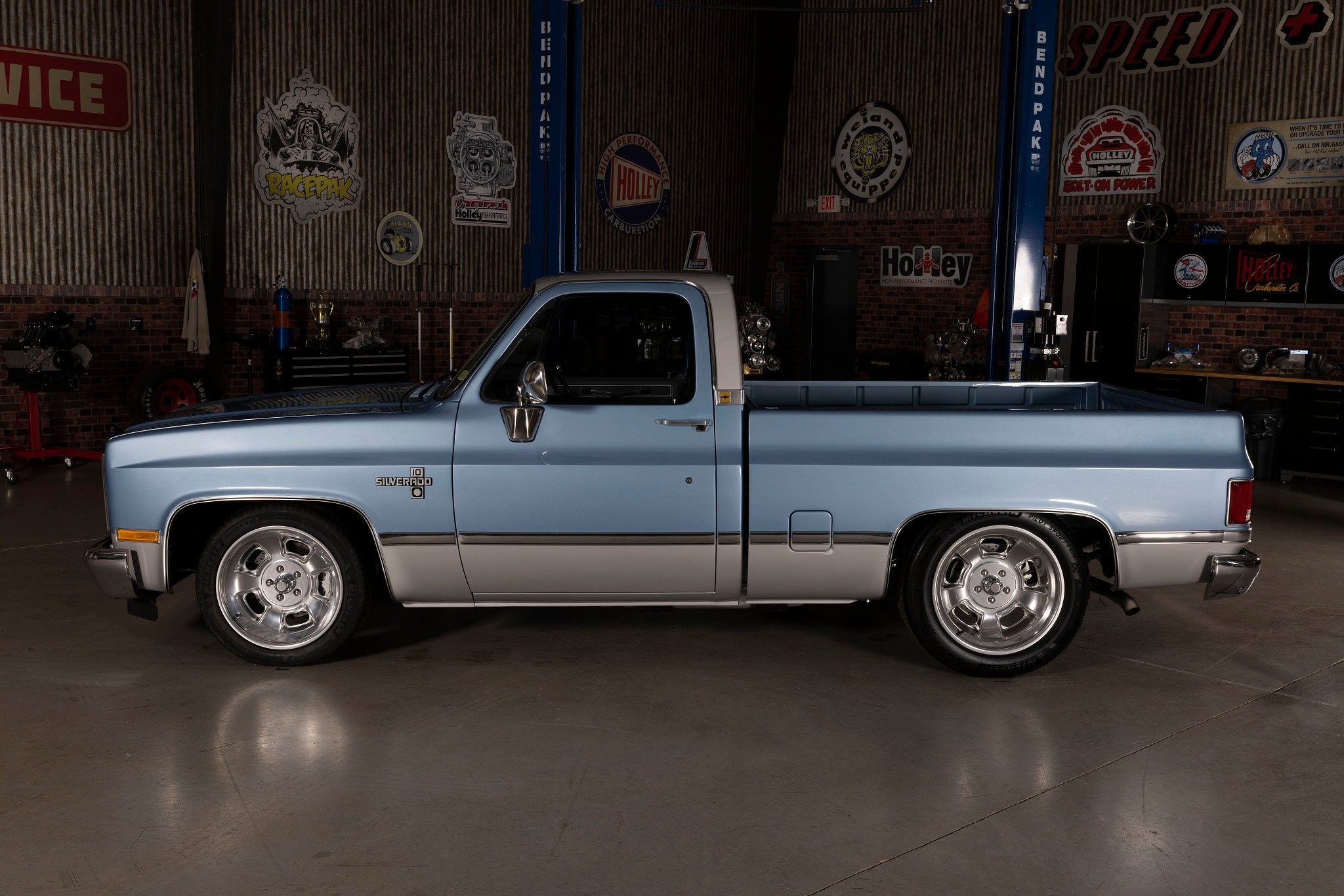

Choose from Individual Wheels or Wheel Sets with the Valve Stems and Lug Nuts (Recommended Combinations for the Square Body Fleet Side C10)
