Recommendations for 5 lug C10 Fitment:
The 5.25" backspacing front wheels fit trucks with the factory-track width front suspension
The 4.5" and 4.75" backspacing front wheels are optimized for narrowed front spindles (common on lowered applications such as CPP spindles - this also gives the wheel a deeper dish).
The 5.5" backspacing fit rear wheels with factory-length axles.
The 4.0" backspacing fit rear wheels on rear axles that have been narrowed 1.5" per side (3" total).
These wheels feature a nostalgic deep-dish style that works best with factory-style brakes. Trucks with big-brake kits require a wheel with more positive offset, but this eliminates the classic deep-dish design & style (since the center of the wheel is moved out flush with the outer edge of the wheel). Customers with big-brake kits should consider using wheels designed for that application (i.e., Rocket Racing "Attack" wheels).
The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e., axle swaps, disc brake / big-brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.
Halibrand 5 Spoke for the C10 are a nostalgic styled wheel based on original Halibrand design, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. These wheels eliminate the fitment guesswork & tire rubbing that can be common with generic-sized after-market wheels. These wheels will also work with 6 lug C10's that have been converted to 5 lug.
The Flow-Formed wheel manufacturing process applies pressure and heat to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel.
Wheels are available with a painted Anthracite finish or fully polished. The 3-step paint process includes a powder-coated primer, paint, and clear-coat for durability and easy maintenance.
Recommendations for 5 lug C10 Fitment:
The 5.25-inch backspacing front wheels fit trucks with the factory-track width front suspension
The 5.5-inch backspacing fit rear wheels with factory-length axles.
Staggered Diameter and Width:
19x8.5 (5.25-inch backspacing) Front Wheels with 20x10 (5.5-inch backspacing) Rear Wheels
Fitment Optimized on the C10 Trucks - Lowered Vehicles with Narrowed Front Spindles and Factory Width Rear Axle
Recommended Tires for a "Meaty" Fitment: 255/45R19 and 275/50R20
Choose from the Several Finishes
20-inch with Staggered Width:
20x8.5 (5.25-inch backspace) Front Wheels with 20x10 (5.5-inch backspace) Rear Wheels
Fitment Optimized on the C10 Trucks - Lowered Vehicles with Narrowed Front Spindles and Factory Width Rear Axle
Recommended Tires for a "Meaty" Fitment: 255/45R20 and 275/50R20
Choose from the Several Finishes

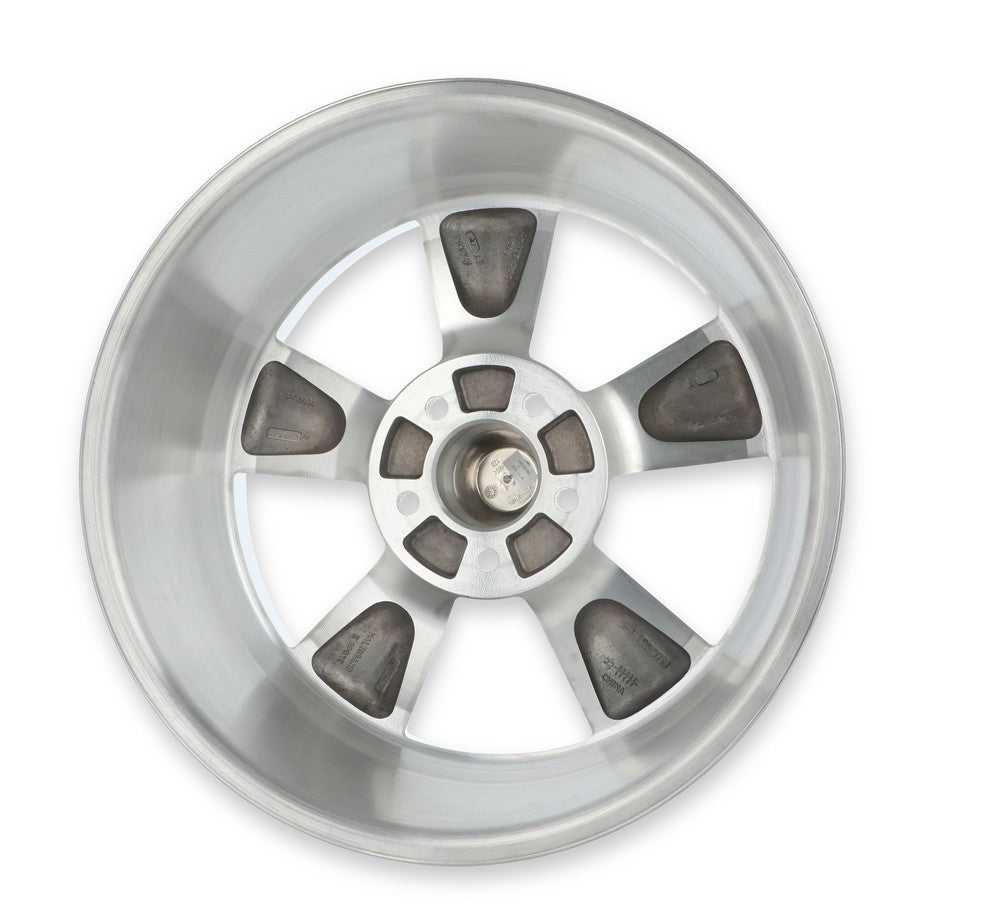

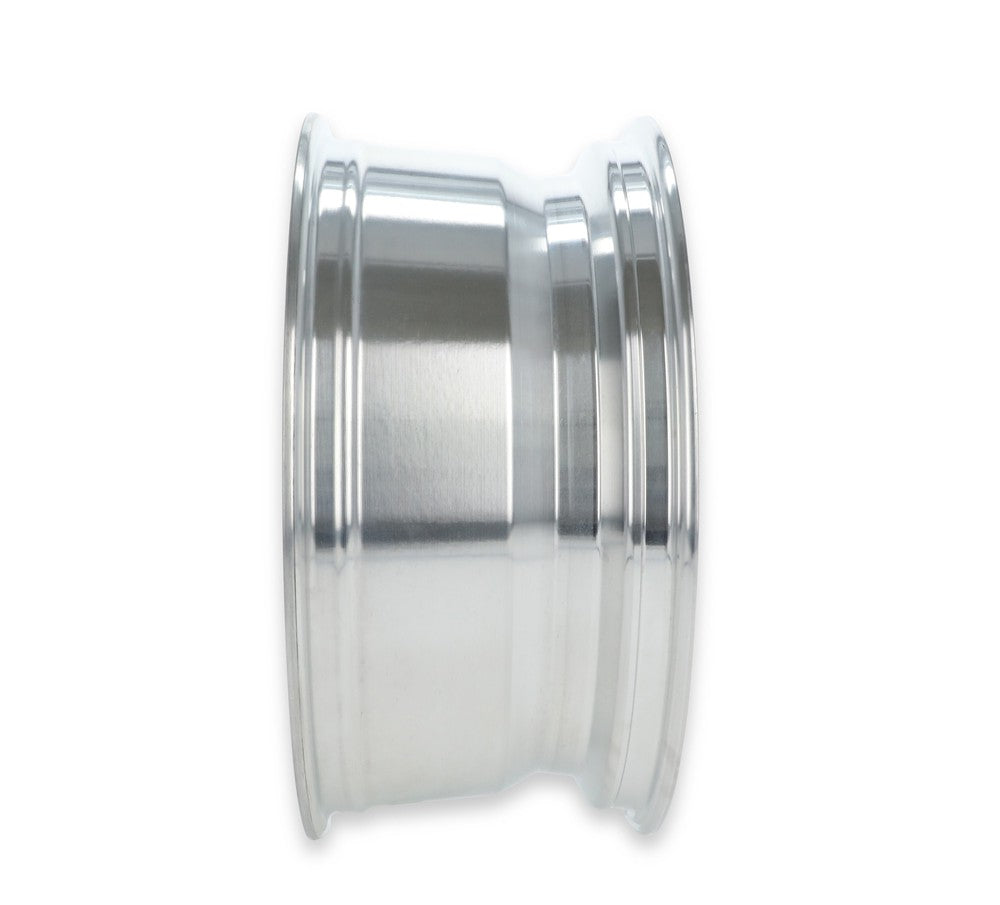

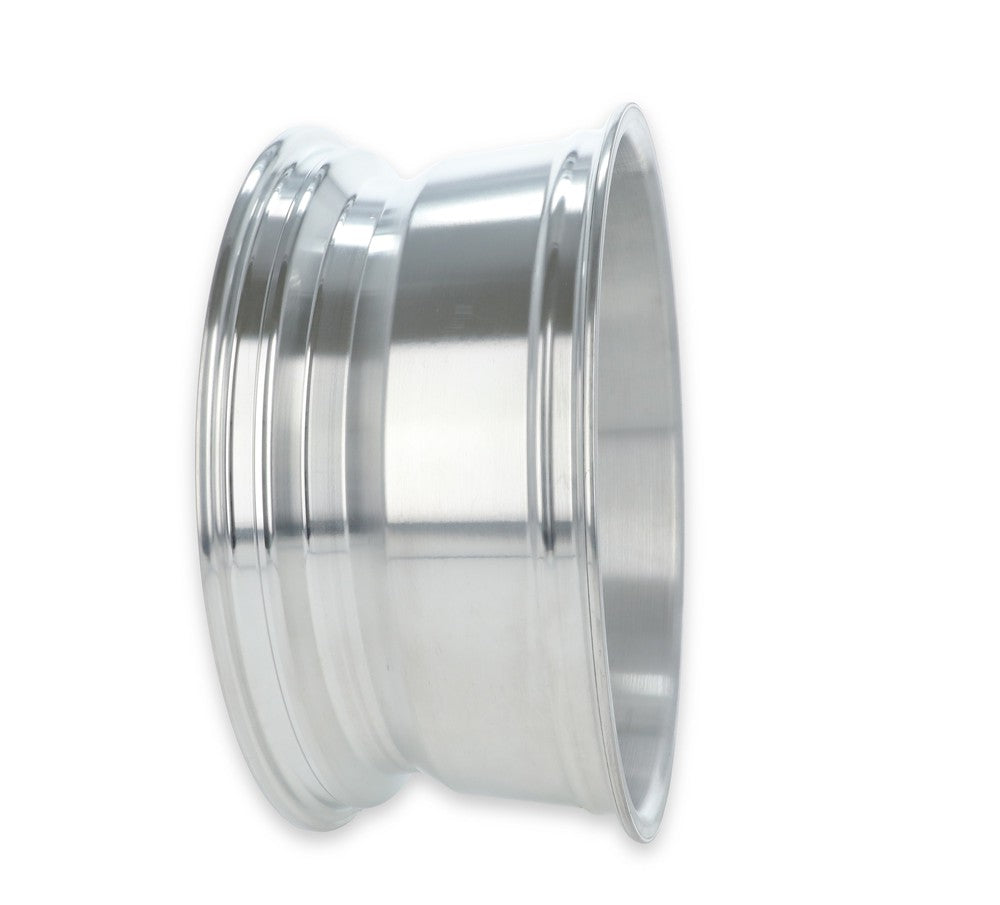

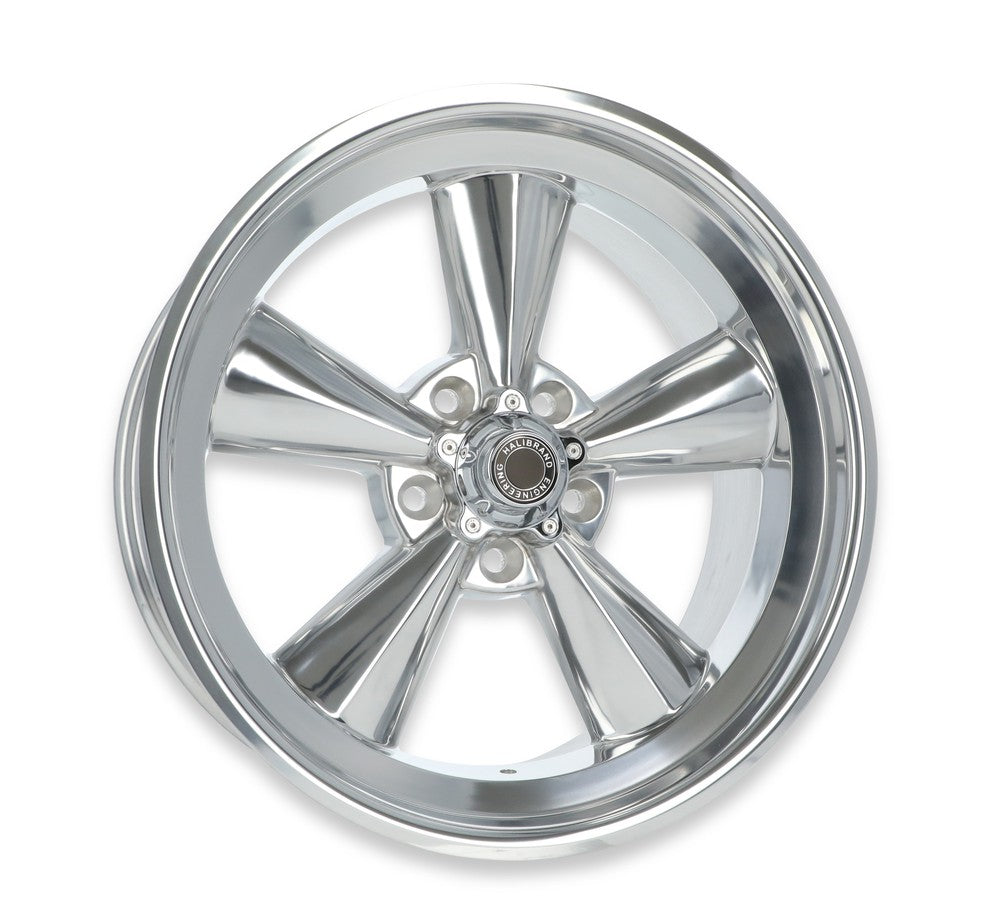

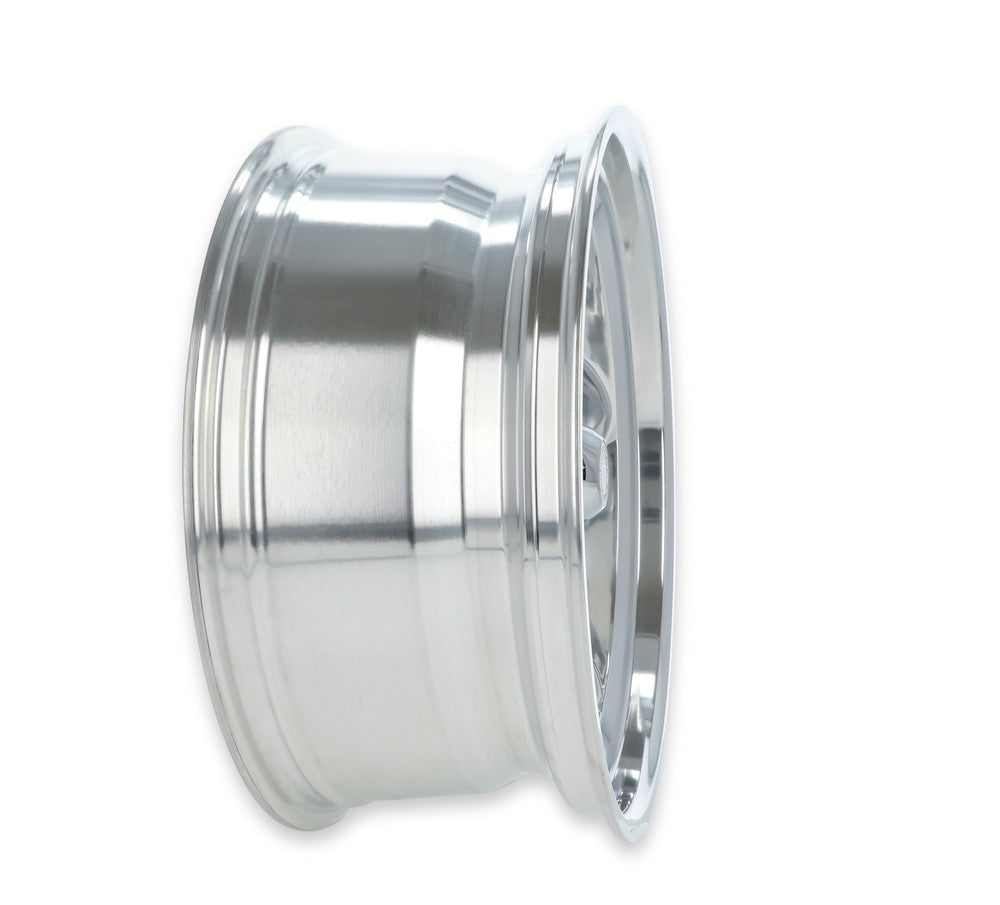

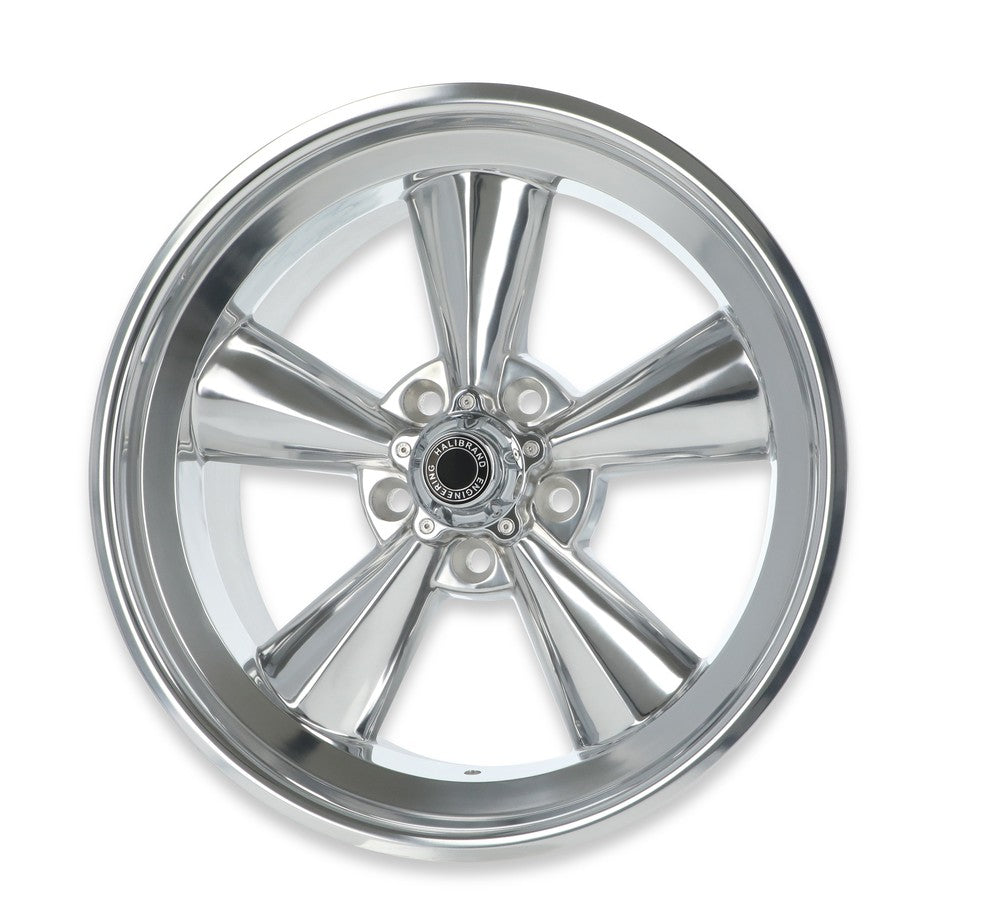

Classic Halibrand nostalgic styled 5 Spoke wheels
A356-T6 aluminum construction with flow-formed wheel manufacturing process - produces wheels that are lighter, stronger, and have a higher shock resistance (than standard cast aluminum wheels)
Hub centric mounting, help ensure the wheel is optimally centered on the C10 hub - instead of relying only on the wheel studs and lug nuts
Choose from the following sizes and backspacing (bs) options: 19x8.5 (bs 5.25-inch), 20x8.5 (bs 5.25-inch), and 20x10 (bs 5.5-inch) - the 8.5-inch wide wheels fit the front, and the 10-inch wide wheels fit the rear
Choose from the following finishes: Anthracite semi-gloss, fully polished without clear coat
3-step paint finish process - Powder Primer, Paint, and Clear-Coat for durability and easy cleaning
