Recommendations for 5 lug C10 Fitment:
The 5.25" backspacing front wheels fit trucks with the factory-track width front suspension
The 4.5" and 4.75" backspacing front wheels are optimized for narrowed front spindles (common on lowered applications such as CPP spindles - this also gives the wheel a deeper dish).
The 5.5" backspacing fit rear wheels with factory-length axles.
The 4.0" backspacing fit rear wheels on rear axles that have been narrowed 1.5" per side (3" total).
These wheels feature a nostalgic deep-dish style that works best with factory-style brakes. Trucks with big-brake kits require a wheel with more positive offset, but this eliminates the classic deep-dish design & style (since the center of the wheel is moved out flush with the outer edge of the wheel). Customers with big-brake kits should consider using wheels designed for that application (i.e., Rocket Racing "Attack" wheels).
The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e., axle swaps, disc brake / big-brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.

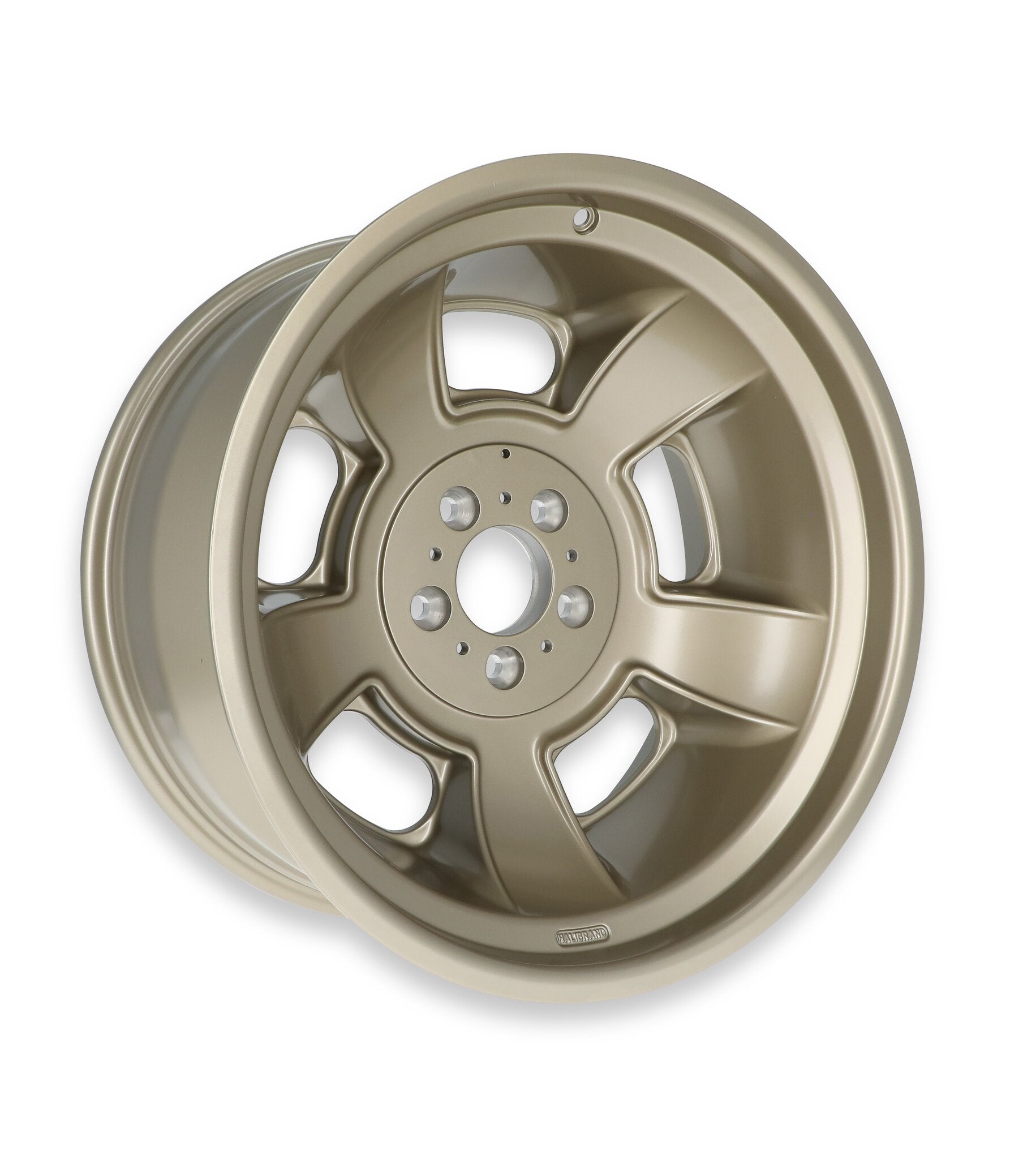

Requires Halibrand Five Bolt Adapter to Use Included Lug Cover and Spinner
Choose from Clear Anodized, Black Anodized, or Gold Anodized adapters to customize your look!
Halibrand Sprint Wheels with lug cover and spinner for the C10 are a nostalgic styled wheel based on the original classic "Sprint" wheels, but updated to fit modern tire sizes and modern tapered seat lug nuts. They were engineered specifically for the C10 trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings. These wheels eliminate the fitment guesswork & tire rubbing that can be common with generic-sized after-market wheels.
The Flow-Formed wheel manufacturing process applies pressure and heat to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is lighter, stronger, and features a higher shock resistance and load capacity compared to a standard cast aluminum wheel.
Wheels are available with a painted or polished finish. Choose from Anthracite, Light Gold, or Polished Finish. The 3-step paint process includes a powder-coated primer, paint, and clear-coat for durability and easy maintenance. The polished wheels are available without clear-coat finish (uncoated wheels can be polished to a show car quality finish but require frequent maintenance to retain the appearance). Each wheel comes with a polished forged aluminum spinner and color matched lug cover.
Recommendations for 5 lug C10 Fitment:
The 5.25-inch backspacing front wheels fit trucks with the factory-track width front suspension
The 4.5 and 4.75-inch backspacing front wheels are optimized for narrowed front spindles (common on lowered applications such as CPP spindles - this also gives the wheel a deeper dish)
The 5.5-inch backspacing fit rear wheels with factory-length axles
The 4.0-inch backspacing fit rear wheels on rear axles that have been narrowed 1.5-inch per side (3-inch total)
Staggered Diameter and Width:
19x8.5 (4.75-inch backspacing) front wheels with 20x10 (5.5-inch backspacing) rear wheels
Fitment optimized on the C10 trucks - lowered vehicles with narrowed front spindles and factory width rear axle
Recommended tires for a "meaty" fitment: 255/45R19 and 275/50R20
Choose from the several finishes
20-inch with Staggered Width:
20x8.5 (4.75-inch backspace) front wheels with 20x10 (5.5-inch backspace) rear wheels
Fitment optimized on the C10 trucks - lowered vehicles with narrowed front spindles and factory width rear axle
Recommended tires for a "meaty" fitment: 255/45R20 and 275/50R20
Choose from the several finishes
19-inch with Staggered Width:
19x8.5 (4.75-inch backspace) front wheels with 19x10 (5.5-inch backspace) rear wheels
Fitment optimized on the C10 trucks - lowered vehicles with narrowed front spindles and factory width rear axle
Recommended tires for a "meaty" fitment: 255/45R19 and 275/50R19
Choose from several finishes

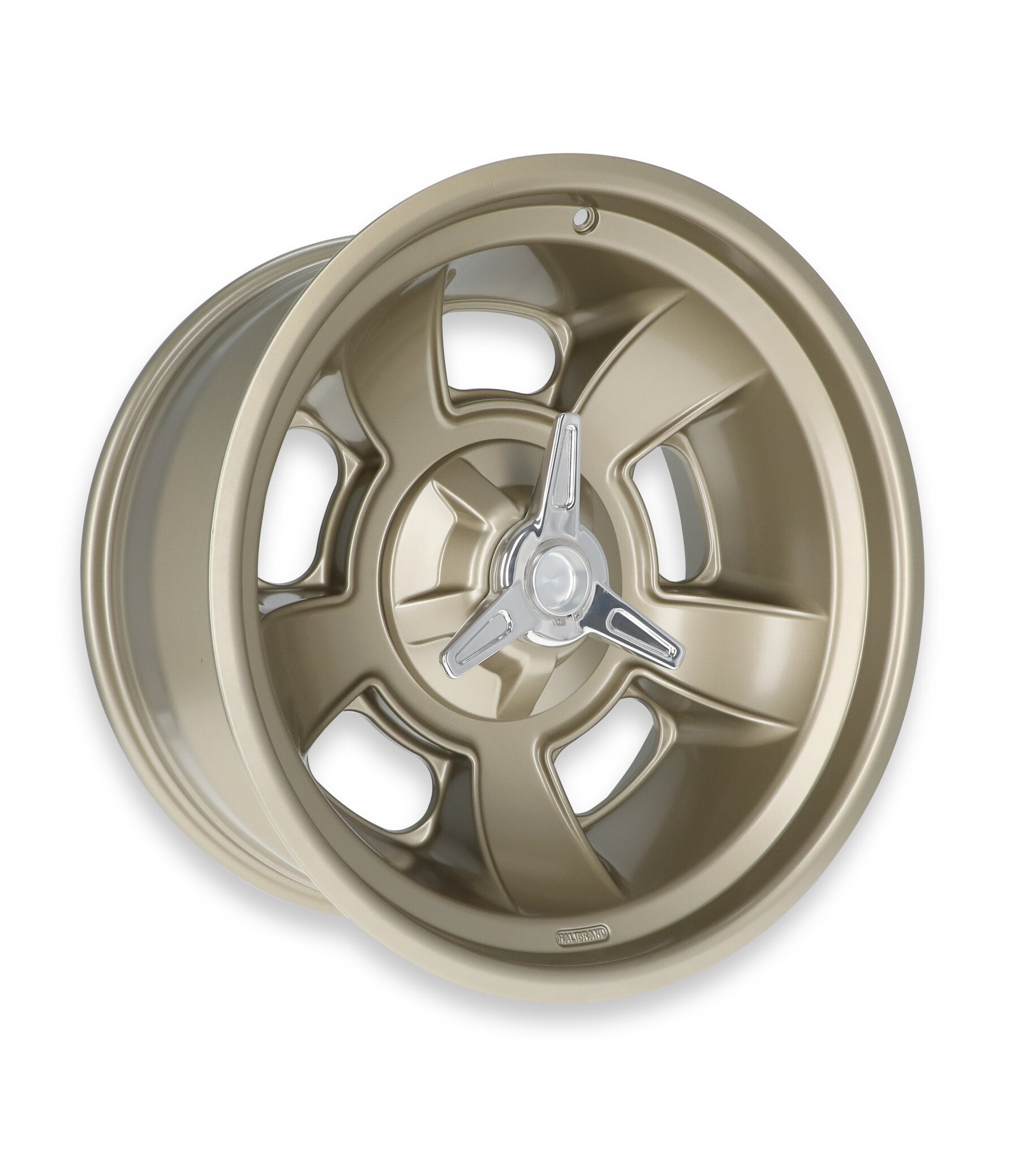

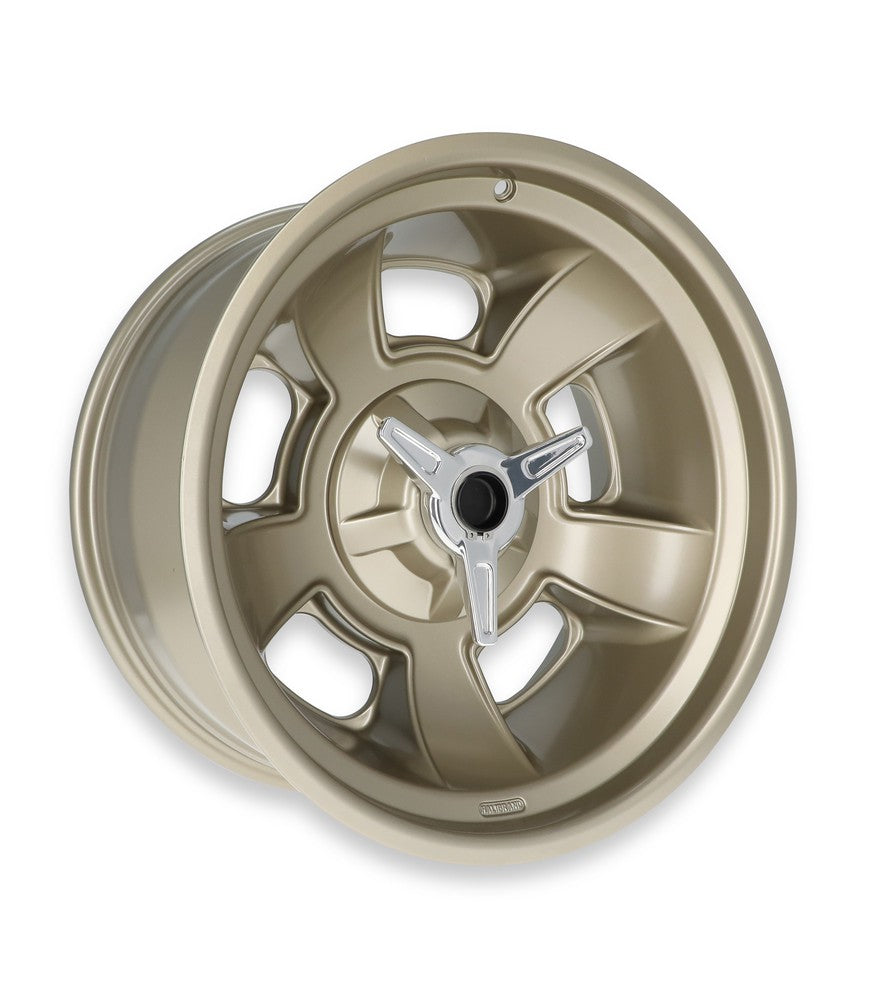

Classic Halibrand nostalgic styled Sprint wheels with lug cover and spinner
Engineered specifically for the C10 fleet side square-body trucks with proven fitment, tire clearance, and backspacing optimized to fill up the wheel openings - eliminates fitment guesswork that is common with most aftermarket generic sized wheels
A356-T6 aluminum construction with flow-formed wheel manufacturing process - produces wheels that are lighter, stronger, and have a higher shock resistance (than standard cast aluminum wheels)
Includes polished forged aluminum spinner and color matching lug cover
Requires 5 bolt adapter (sold separately): PN: HB010-006 (clear), HB010-032 (black), and HB010-033 (gold)
Hub centric mounting, help ensure the wheel is optimally centered on the C10 hub - instead of relying only on the wheel studs and lug nuts
Deep-dish styled wheels with curved spokes - for improved appearance and classic style
Bolt pattern: 5x5 (5x127mm) - fits 1973-1987 C10 2WD fleet side Chevrolet/GMC trucks, 1973-1982 2WD Chevrolet/GMC Blazer/Jimmy, and 1973-1987 2WD Chevrolet C10 Suburban
Choose from the following sizes and backspacing (bs) options: 19x8.5 (bs 4.5, 4.75, 5.25-inch), 19x10 (bs 5.5-inch), 20x8.5 (bs 4.5, 4.75, 5.25-inch), and 20x10 (bs 4.0, 5.5-inch) - the 8.5-inch wide wheels fit the front, and the 10-inch wide wheels fit t
Choose from the following wheel finishes: Light Gold semi-gloss, Anthracite semi-gloss, or Polished without clear-coat
3-step paint finish process - powder primer, paint, and clear-coat for durability and easy cleaning
The Mag7 finish has a similar appearance to the classic chemical treatment that was used on magnesium Halibrand wheels in the 1960s and 1970s
